Introduction

With the cooperation of Amazon Web Services Japan G.K., we borrowed two AWS Outposts servers (one with an Intel Xeon processor and one with an AWS Graviton2 processor) and verified building an HA cluster between EC2 instances running on AWS Outposts servers.
We verified the following two configurations. In this article, we introduce considerations when building an HA cluster on AWS Outposts servers and share the results of each verification.

For this verification, we used AWS Outposts servers lab Tokyo at AWS Startup Loft (Meguro office, 17F) of Amazon Web Services Japan G.K., and NEC CONNECT 5G Lab as our co-creation environment.
The following pages are in Japanese. Please use the translation function as appropriate.

[Reference]
AWS Outposts servers lab Tokyo がオープンしました
NEC、AWS Outposts サーバーを活用した共創環境を国内で初めて構築

Contents

1. What is AWS Outposts?

AWS Outposts is a fully managed service that, when installed at customer locations such as data centers, factories, and retail stores, makes it possible to run AWS services outside AWS data centers. Its actual form consists of a physical server or rack that can be utilized in environments meeting the installation requirements.
This enables you to use familiar AWS services, tools, and APIs to integrate with on-premises systems with low latency and to meet data residency (location) requirements.
AWS Outposts comes in two types—AWS Outposts servers and AWS Outposts racks—which differ in pricing, physical size, processor options, and the number of available AWS services. As of January 14th, 2026, the available processors and services are:

■AWS Outposts servers

■AWS Outposts racks

AWS Graviton2 is an ARM-based processor known for its energy efficiency, contributing to cost reduction and lower CO2 emissions.
For details, please refer to the following.

[Reference]
AWS Graviton Processors
AWS Outposts Family

2. Considerations When using EXPRESSCLUSTER X on AWS Outposts servers

For this verification, we used AWS Outposts servers.
When building an HA cluster with EC2 instances on AWS Outposts servers, consider the following points.

2.1 Instance Types

We can use EC2 instance types c6id (Intel Xeon processors) or c6gd (AWS Graviton2 processors). On Intel Xeon, we can select the x86_64 architecture, and on AWS Graviton2, we can select the ARM architecture.
We used EXPRESSCLUSTER X 5.1 for this verification, which does not support the ARM architecture.
However, for this verification, we used a special ARM evaluation build of EXPRESSCLUSTER X 5.1 to validate on AWS Outposts servers equipped with AWS Graviton2 processors.

2.2 Storage

On AWS Outposts servers, each EC2 instance can use only one instance store. Its size is fixed by the instance type, and for the c6id.2xlarge and c6gd.2xlarge used in our verification, it is fixed at 474 GiB and cannot be extended. Additionally, when we create an EC2 instance from an AMI, the root partition is automatically extended to consume all remaining free space.
Therefore, when building a mirror disk type cluster, we need to prepare an AMI in advance that has a mirror partition created on the instance store by following the steps below.

Since we use the instance store as the root partition, shutting down the OS terminates the EC2 instance.
Therefore, if we wish to continue using the EC2 instance after a failure occurs, we need to change the EXPRESSCLUSTER recovery action from OS shutdown to OS restart or another appropriate action.

2.3 Network Interfaces

EC2 instances on AWS Outposts servers support two types of network interfaces. They differ in how IP addresses are assigned:

When we create an EC2 instance and attach a secondary network interface, the LNI IP address is assigned automatically; however, that address is not usable for communication.
Therefore, we assign a usable IP address to the LNI with nmcli command or by editing the ifcfg file.
Depending on the OS, we may not be able to change the IP address with nmcli command or by editing the ifcfg file. In that case, we configure a DHCP reservation so that the DHCP server assigns the IP address to the LNI.

[Reference]
Local network interfaces for your Outposts servers

2.4 EXPRESSCLUSTER Resources

On the AWS cloud, EC2 ENIs do not support ARP. Therefore, we cannot use the floating IP resource in EXPRESSCLUSTER X and must use the AWS virtual IP resource instead.
On AWS Outposts servers, LNIs support ARP. Therefore, we can use the floating IP resource.
In this verification, we build an HA cluster where clients access services via the LNI. Therefore, we use the floating IP resource.

3. Verifications

We verified the following two configurations on AWS Outposts servers.

For EC2 instances on AWS Outposts servers, we used AMIs prepared according to the steps in 2.2 Storage. For details on launching EC2 instances on AWS Outposts servers, please refer to the following.

[Reference]
Step 2: Launch an instance on the Outpost

Install EXPRESSCLUSTER X on the EC2 instances using the same installation procedure as on AWS cloud.
As noted in 2.2 Storage, on AWS Outposts servers, EC2 instances provide only the instance store. When we shut down the OS, the EC2 instance is terminated.

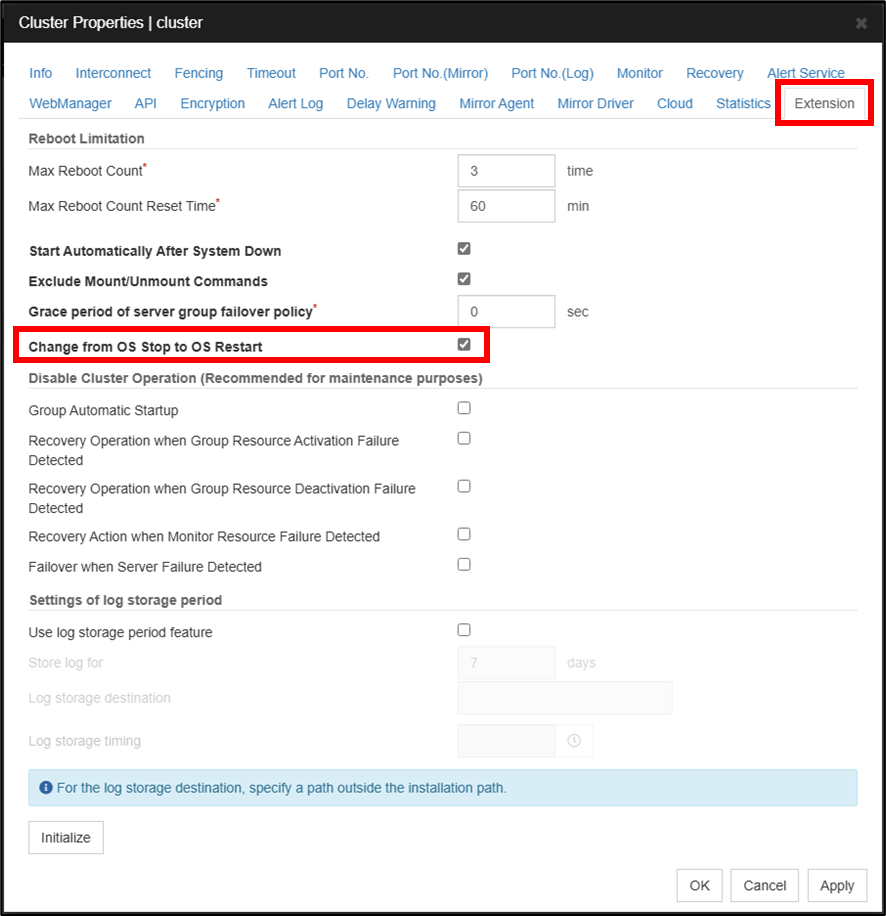

To prevent unexpected OS shutdown triggered by EXPRESSCLUSTER X behavior, we change the default action upon fault detection to OS restart.

For details on the changes in behavior due to the above settings, please refer to the following.

[Reference]
Documentation - Previous Versions

• EXPRESSCLUSTER X 5.1 > EXPRESSCLUSTER X 5.1 for Linux > Reference Guide

  -> 2. Parameter details

  -> 2.2. Cluster properties

  -> 2.2.21. Extension tab

  -> Change from OS Stop to OS Restart

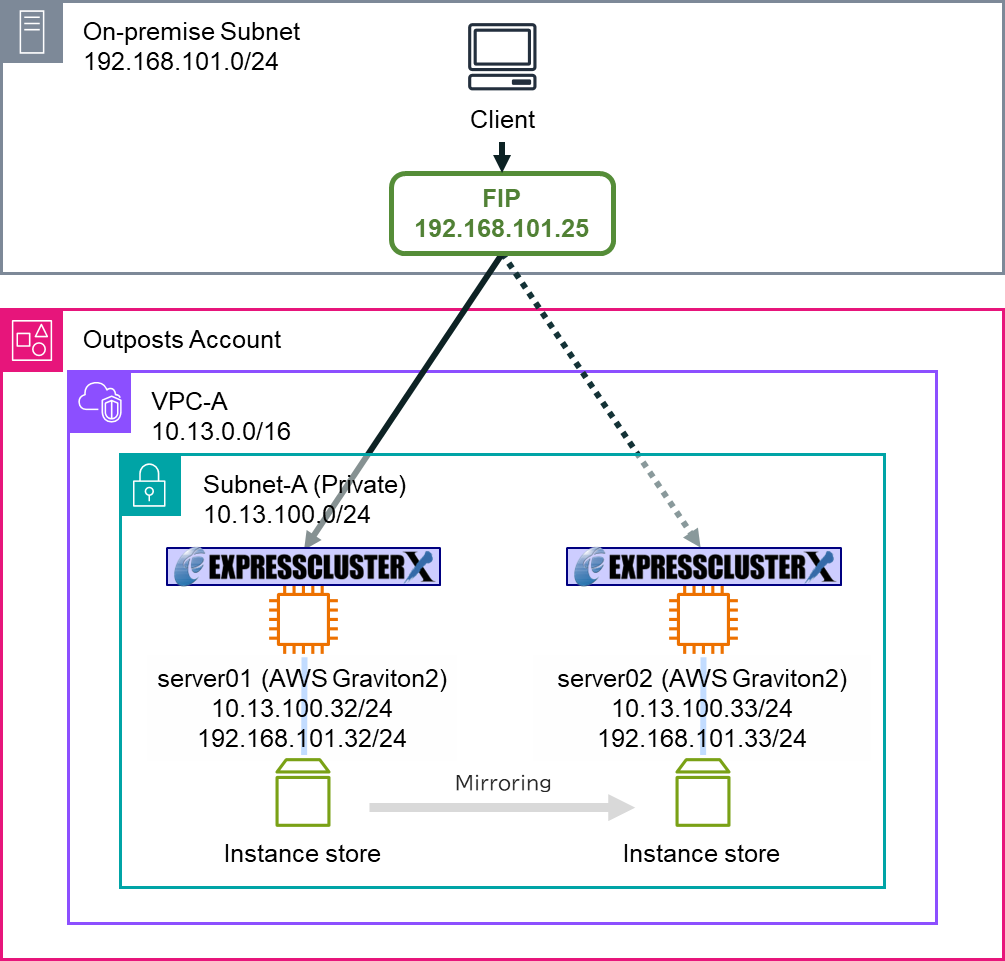

3.1 Verification 1: Building an HA Cluster with EC2 Instances on a Single AWS Outposts server

3.1.1 Verification Configuration

In Verification 1, we verified the configuration of a mirror disk type HA cluster using two EC2 instances on a single AWS Outposts server.

■HA cluster servers

■Network configuration

■EXPRESSCLUSTER X settings

3.1.2 Verification Results

After starting the failover group, we checked:

For failure testing, we simulated hardware issues (disabling the LNI interface, OS restart). We checked that EXPRESSCLUSTER detected the failures and automatically performed failover and recovery operations.

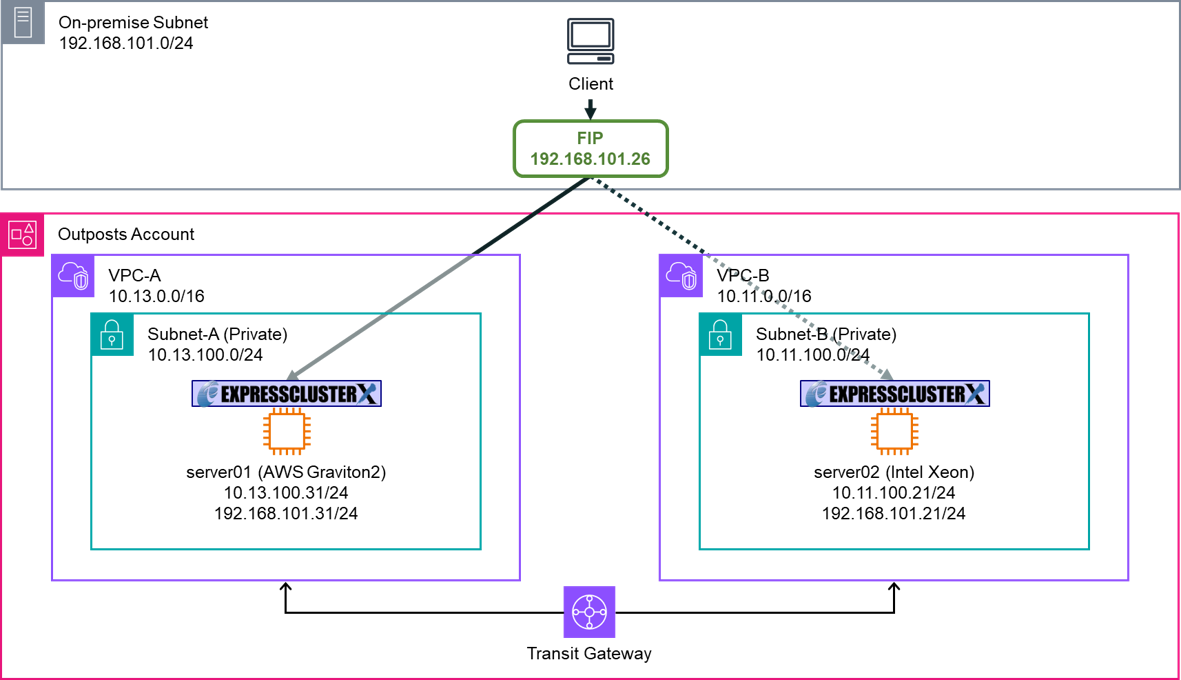

3.2 Verification 2: Building an HA Cluster with EC2 Instances on Two AWS Outposts servers

3.2.1 Verification Configuration

In Verification 2, we verified the configuration of a diskless type HA cluster using two EC2 instances on each of two different AWS Outposts servers (one AWS Graviton2 processor and one Intel Xeon processor).

■HA cluster servers

■Network configuration

■EXPRESSCLUSTER X settings

3.2.2 Verification Results

After starting the failover group, we checked:

For failure testing, we simulated hardware issues (disconnecting the LNI cable (*), OS restart). We checked that EXPRESSCLUSTER detected the failures and automatically performed failover and recovery operations.

Conclusion

We verified the process of building HA clusters on AWS Outposts servers.
Using EXPRESSCLUSTER X on AWS Outposts servers improves availability. By building mirror disk type HA clusters on AWS Outposts servers, we can mirror the data stored on each EC2 instance’s instance store. Even if one EC2 instance shuts down due to a failure, the healthy EC2 instance retains the data, thereby reducing the risk of data loss.

If you consider introducing the configuration described in this article, you can perform a validation with the trial module of EXPRESSCLUSTER. Please do not hesitate to contact us if you have any questions.
