Introduction

We tried building an HA cluster across regions on Microsoft Azure (hereinafter called “Azure”).

In Azure, virtual network peering allows you to interconnect networks between Azure virtual network (hereinafter called “Virtual network”), allowing you to build HA clusters with diverse network configurations.

This time, we will introduce the procedure for building an HA cluster across regions using virtual network peering.

Contents

1. What is Virtual Network Peering?

Virtual network peering is a function that interconnects virtual networks.

There are two types of virtual network peering:

The peered virtual networks function apparently as a single network.
Resources in one virtual network can connect directly to resources in the other virtual network.
Traffic between virtual machines is routed directly through Microsoft's private network, not through gateways or the public Internet.

[Reference]

Virtual network peering

2. HA Cluster Configurations

This time, we will build a two-node mirror disk type cluster using Azure DNS.
Azure Virtual Machines (hereinafter called "VM") is located in the West Central US region and the West US 2 regions, respectively, and connects virtual networks in the West Central US region and the West US 2 regions using global virtual network peering.

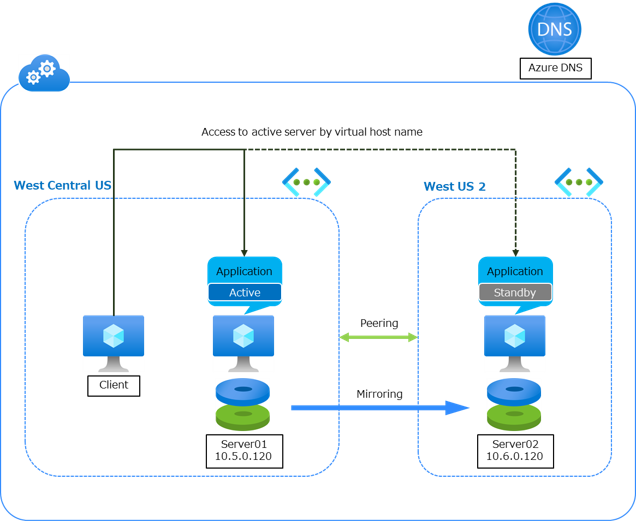

The configuration is as follows.
Use the Azure DNS to switch destinations to active VMs.

3. HA Cluster Building Procedure

We build an "HA cluster using Azure DNS".
The configuration of the networks and VMs is as follows.

3.1 Creating HA Clusters Using Azure DNS

For procedure on building an HA cluster, refer to "4 Cluster Creation Procedure (for an HA Cluster Using Azure DNS)" in the "HA Cluster Configuration Guide for Microsoft Azure".
Referring to the procedure for building an HA cluster, after creating the VMs, install the Azure CLI, create the service principal, and configure EXPRESSCLUSTER X.

Since "4.2 Configuring Microsoft Azure - 2) Creating a virtual network" in the HA Cluster Configuration Guide is a procedure for deploying VMs in the same region, only the virtual network "Vnet1" is created.
This time, in order to place the VM in another region and build a mirror disk type HA cluster, create virtual networks "Vnet1" and "Vnet2".
Also, in "4.2 Configuring Microsoft Azure - 3) Creating a virtual machine" in the HA Cluster Configuration Guide, select the [Region] where the VM will be placed, and place the VM in a different virtual network.
Create virtual machine "Server01" in the "West Central US" region and virtual machine "Server02" in the "West US 2" region.

After creating the virtual networks "Vnet1" and "Vnet2", it is necessary to interconnect the networks, so please refer to this blog "3.2 Creating Virtual Network Peering" to configure virtual network peering.

3.2 Creating Virtual Network Peering

Use the Azure portal to connect virtual networks with virtual network peering.
After creating the virtual networks "Vnet1" and "Vnet2", select the virtual network "Vnet1".

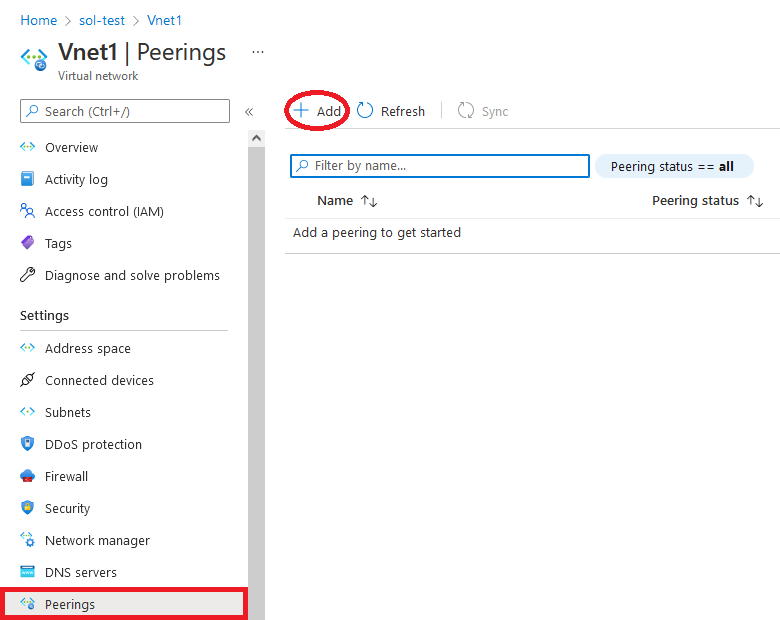

After selecting "Vnet1", select [Peerings] in [Settings] on the left menu, and then click [Add].

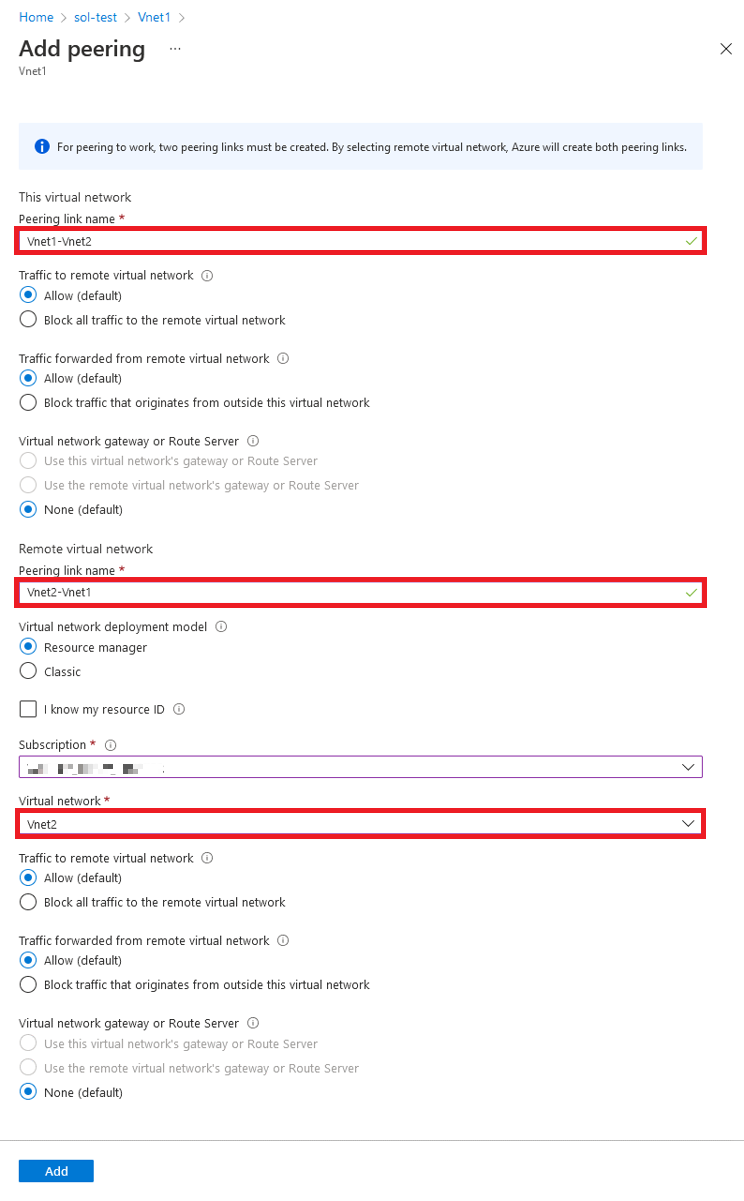

Enter or select the following information. Leave the other settings at their default values and click [OK].

The procedure for the virtual network connection was refered to the following site.

[Reference]

Tutorial: Connect virtual networks with virtual network peering using the Azure portal

4. Checking the Operation

Checking the operation by referring to "4 Cluster Creation Procedure (for an HA Cluster Using Azure DNS) - 4.4 Verifying the created environment" in the "HA Cluster Configuration Guide for Microsoft Azure".

Note the IP address of the DNS server from the result of the nslookup command.

Next, before and after the failover, specify the virtual host name (sample.test.zone in this configuration) as the argument of the ping command and execute it.
Check whether the specified virtual host name has been name resolved as the IP address of the active VM or the standby VM.

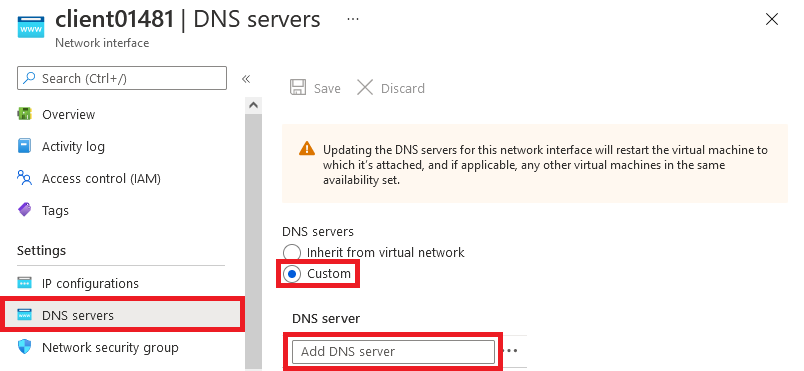

Change the DNS server settings referenced by the VM (Client) in advance.

The procedure for change the DNS server was refered to the following site.

[Reference]

Change DNS servers

After changing the DNS server settings, do the following:

We have confirmed that we can use Azure DNS resources to access VMs located in different regions with the same virtual host name.

Conclusion

This time, we introduced the procedure for building an HA cluster across regions using virtual network peering.
Virtual network peering is very convenient way to easily interconnect virtual networks even if they are in different regions.

If you consider introducing the configurations described in this article, you can perform a validation with the trial module of EXPRESSCLUSTER. Please do not hesitate to contact us if you have any questions.
