Optical Transceivers for Mobile Radio Access Network

Optical Transceivers for Mobile Radio Access Network

NEC 25G Tunable SFP Technical Demonstration

This video demonstrates the Tunable SFP’s Self Tuning Function. The Self Tuning Function searches for appropriate optical wavelengths and establishes signal connection automatically to the far end SFP. This innovative feature significantly reduces installation tasks.

Tunable SFP

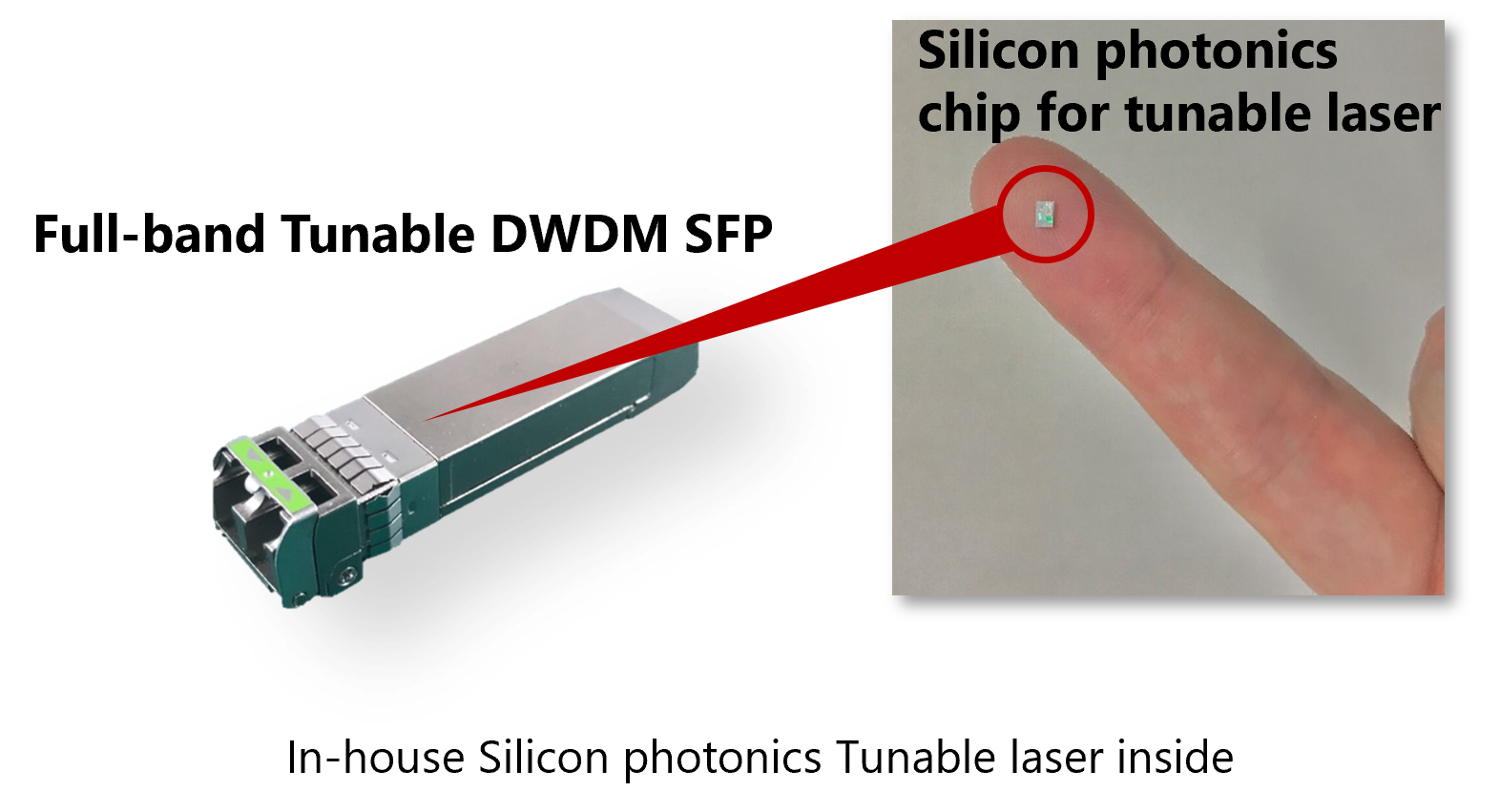

NEC is vertically integrated in the development of optical devices using silicon photonics technology, the development of optical subassembly technology, and the development of optical transceiver technology combined with high-speed electronic circuits.

Product Lineup

10Gb/s C-Band DWDM Tunable SFP+ Optical Transceiver

Speed Form Part Number Wavelength Distance Specification
10.3Gb/s SFP+ OD-CP10xTELA000 C-Band
100GHz Grid
80km datasheet
Comply with the Smart Tunable MSA

25Gb/s C-Band DWDM Tunable SFP28 Optical Transceiver

Speed Form Part Number Wavelength Distance Specification
25.7Gb/s SFP28 OD-CP10xTEL0000 C-Band
100GHz Grid
15km datasheet
Comply with the Smart Tunable MSA

25Gb/s O-Band WDM SFP28 Optical Transceivers

Speed Form Part Number Wavelength Distance Specification
25.7Gb/s SFP OD-CP104FLL1xxx 8ch 30km datasheet
25.7Gb/s SFP OD-CP104FLL1xxx 16ch 30km datasheet
25.7Gb/s SFP OD-CP104FLL1xxx 24ch 30km datasheet

25G SFP28 BiDi LR/ER Optical Transceiver

Speed Form Part Number Wavelength Distance Specification
25.7Gb/s SFP OD-BP10xxxL 1270nm/1310nm 10km/30km datasheet

25G SFP28 BiDi ZR Optical Transceiver

Speed Form Part Number Wavelength Distance Specification
25.7Gb/s SFP OD-BP10xxZL 1296nm/1309nm 60km datasheet

25G SFP28 BR40 BiDi Optical Transceiver

Speed Form Part Number Wavelength Distance Specification
25.7Gb/s SFP OD-BP10xxxL 1289nm/1314nm 40km datasheet

50G SFP56 BR40 Lite Optical Transceiver

Speed Form Part Number Wavelength Distance Specification
53.1Gb/s SFP OD-BP11xxxL 1289nm/1314nm 30km datasheet

Dual SFP Optical Transceiver

Speed Form Part Number Wavelength Distance Specification
2x25.7Gb/s DSFP OD-BD10xxxL 1270nm/1330nm 10km datasheet
