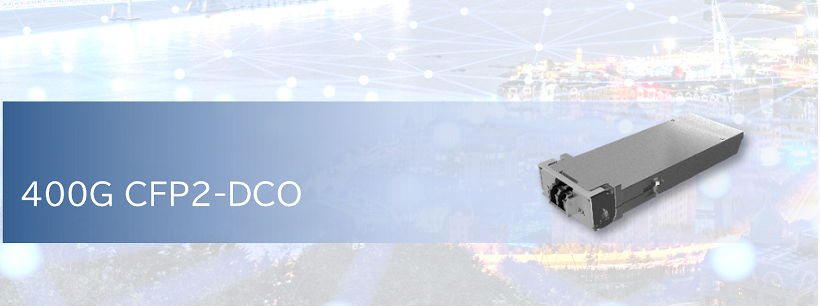

400G CFP2-DCO

400G CFP2-DCO

NEC’s 400G CFP2-DCO optical transceiver adheres to OIF 400ZR/OpenZR+/OpenROADM and is intended for use in the DCI/metro network.

Digital coherent optical communication technology enables high-capacity and long-distance transmission. The use of NEC’s compact and high-density implementation technology and the DSP based on a 7nm CMOS process, has resulted 400Gb/s transmission in a CFP2 size.

NEC leverages its advanced optical device development technology to support open, green, and high-speed networks.

Features

  • For DCI/Metro WDM application
  • Supports OIF 400ZR/Open ZR+/OpenRoadm
  • Full C-band Tunable
  • Reach: 600km (400G DP-16QAM), 1,200km (200G DP-QPSK), 3,000km (100G DP-QPSK)

Specifications

Bitrate Part Number Form Factor Specification
100G/200G/400G OD-PPAC48D10001 CFP2-DCO 400ZR/OpenZR+/OpenROADM
