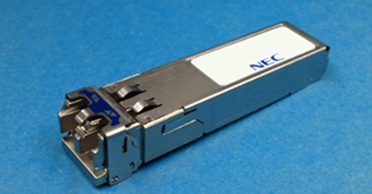

25Gb/s WDM SFP28 Optical Transceivers

25Gb/s WDM SFP28 optical transceivers for mobile network

Features

25Gb/s C-Band DWDM SFP28 Optical Transceivers

  • • Compliant to IEEE802.3cc (25GBASE-LR)
  • • C-band Fixed wavelength
  • • 25G electrical interface (OIF CEI-28G-VSR)
  • • 24.3 to 25.78Gb/s Data Rate
  • • 9.8 to 10.31Gb/s Data Rate (CDR Bypassed: Multi-Rate function)
  • • 10 km reach over SMF (ITU-T G.652)
  • • Single +3.3V power supply
  • • Case temperature range: 0°C to +70°C (Standard version)
  • • Case temperature range: -20°C to +85°C (E-Temp. version)
  • • Hot pluggable SFP28 footprint (SFF-8071)
  • • RoHS compliant

25Gb/s C-Band DWDM Tunable SFP28 Optical Transceivers

  • • Compliant to IEEE802.3cc (25GBASE-LR)
  • • C-band, 100GHz Grid
  • • 25G electrical interface (OIF CEI-28G-VSR)
  • • 24.3 to 25.78Gb/s Data Rate
  • • 9.8 to 10.31Gb/s Data Rate (CDR Bypassed: Multi-Rate function)
  • • 10 km reach over SMF (ITU-T G.652)
  • • Single +3.3V power supply
  • • Case temperature range: 0°C to +70°C (Standard version)
  • • Case temperature range: -20°C to +85°C (High Temp. version)
  • • Hot pluggable SFP28 footprint (SFF-8071)
  • • RoHS compliant

25Gb/s O-Band WDM SFP28 Optical Transceivers

  • • Compliant to IEEE802.3cc (25GBASE-LR)
  • • O-Band Fixed wavelength
  • • 25G electrical interface (OIF CEI-28G-VSR)
  • • 24.3 to 25.78Gb/s Data Rate
  • • 9.8 to 10.31Gb/s Data Rate (CDR Bypassed: Multi-Rate function)
  • • 30 km reach over SMF (ITU-T G.652)
  • • Single +3.3V power supply
  • • Case temperature range: 0°C to +70°C (Standard version)
  • • Case temperature range: -20°C to +85°C (High Temp. version)
  • • Hot pluggable SFP28 footprint (SFF-8071)
  • • RoHS compliant

Product Lineup

25Gb/s C-Band DWDM SFP28 Optical Transceivers

Speed Form Part Number Wave
length
Distance Specification
25.7Gb/s SFP OD-CP10xFSL00xx C-Band
Fixed
100GHz Grid
10km datasheet

Status: General availability

25Gb/s C-Band DWDM Tunable SFP28 Optical Transceivers

Speed Form Part Number Wave
length
Distance Specification
25.7Gb/s SFP OD-CP10xTSL0000 C-Band
100GHz Grid
10km datasheet

25Gb/s O-Band WDM SFP28 Optical Transceivers

Speed Form Part Number Wave
length
Distance Specification
25.7Gb/s SFP OD-CP104FLL1xxx 8ch,
800GHz grid
30km datasheet
25.7Gb/s SFP OD-CP104FLL1xxx 16ch,
400GHz grid
30km datasheet
25.7Gb/s SFP OD-CP104FLL1xxx 24ch,
200GHz grid
30km datasheet

Status:
8ch: General availability
16ch and 24ch: Sample available
