SX-Aurora TSUBASA VE-Card
Vector Engine
Model Overview
Ideal for AI, big data, and system embedded applications
Application fields: product inspection, medical image processing, demand forecasting, weather forecasting, radar analysis, etc.

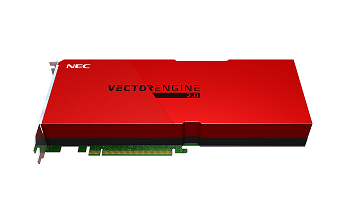

| Card image |  |
|---|---|
| Model Name | Type 20B-P |
Basic Core Specifications
| Operating frequency (GHz) | 1.600 |
|---|---|
| Theoretical operation performance (GFLOPS) Double precision | 307 |
| Theoretical operation performance (GFLOPS) Single precision | 614 |
Basic Processor Specification
| Number of cores/processor | 8 |
|---|---|
| Theoretical calculation performance (TFLOPS) Double Precision | 2.45 |
| Theoretical calculation performance (TFLOPS) Single Precision | 4.91 |
| Memory bandwidth (TB/s) | 1.53 |
| Cache capacity (MB) | 16 |
| Memory capacity (GB) | 48 |
Form Factor
| Dimensions and weight | 266.46mm(W) x 111.15mm(H) x 37.77mm(Th), 0.85kg |
|---|---|
| When extender is used | 311.46mm (card + straight extender) |
| Auxiliary power connector, connection position CPU | 8pin |

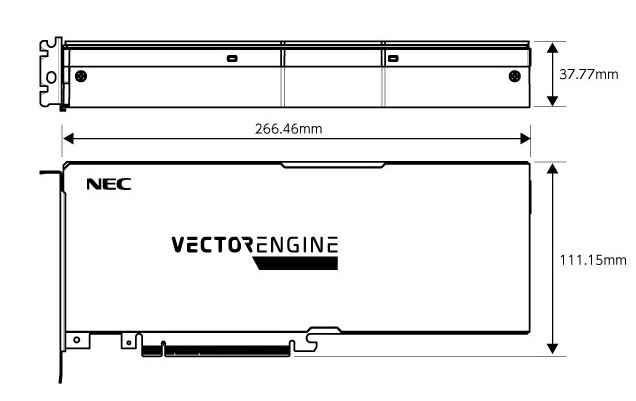

| Card Dimensions |  |
Eligible server for VE installation
| OS | Designated version of Red Hat Linux Enterprise Click here for a list of supported OS. |
|---|---|
| Certified Server | Please refer to this list of certified servers |
Installation specifications
| Power Consumption | 300W or less |
|---|---|
| Cooling Method | Air Cooling (passive) |
| Temperature Conditions | -40°C to 70°C |
| Humidity Condition | 10%RH to 90%RH |
| Temperature Condition During Operation | 10°C to 35°C |
| Operating Humidity | 5%RH to 95%RH |
| Certification and Safety Standards EMIS standards |
UL(c-UL) 62368-1, IEC/EN 62368-1(CE marking) FCC, ICES-003, VCCI Class A |
| Accessory Information | Vector Engine Card Card extender and screws Startup Guide |
| ECC | Yes |
| Bus | PCIe gen3 x16 |
Software
By using NEC's original compiler the vector engine is easy to use.
| Standard Software | Vector Engine control software and driver |
|---|---|
| Software Development Support | NEC Software Development Kit for Vector Engine, NEC MPI, NEC MPI/Scalar-Vector Hybrid |
