MasterScope SystemManager - Technical Details End-of-life

Feature Outline

Basic features

Optional features

Basic Features

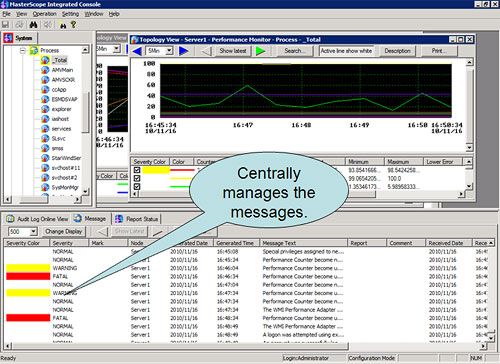

Message monitoring

Centrally manages the messages generated by performance monitoring, application log monitoring, etc. Messages by linkage with the other products are also integrated.


Performance monitoring

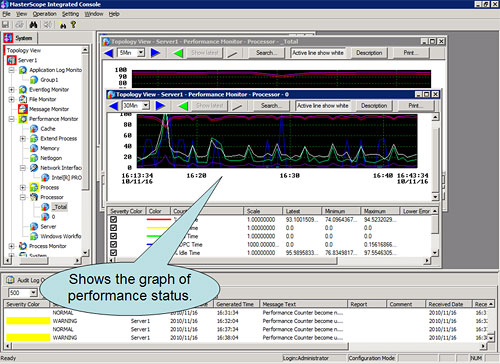

It graphically displays the performance status (CPU, memory, etc) of each server.

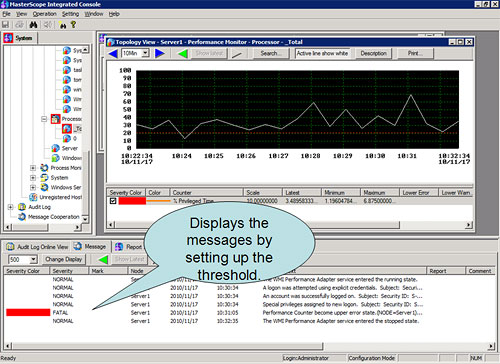

Monitors the capacity of the CPU, memory, etc... Also, generates the message when the threshold is exceeded.

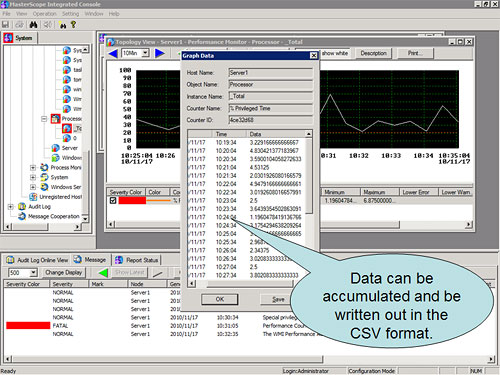

Performance data can be accumulated and charted as statistics.

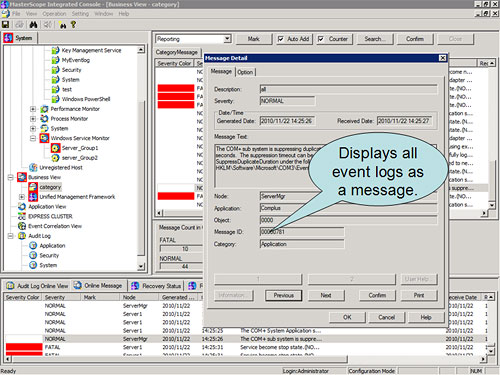

Application log, syslog, and event log monitoring

Monitors the application log, event log and syslog and displays and informs only the necessary information.

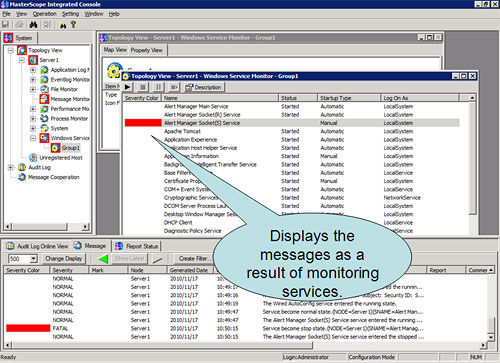

Windows service and process monitoring

Monitors whether services and processes are alive or not, and displays messages when failures occur.

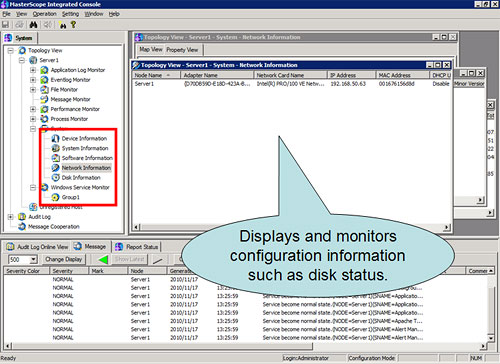

Configuration management

Regularly collects and displays the server configuration information.

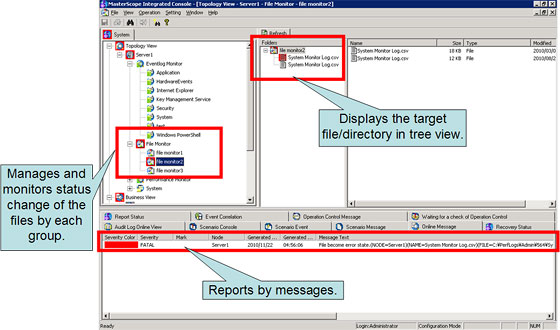

File monitoring

This Prevents disk depletion and also enables early detection towards deletion / modification for all the system required files. In case if the file capacity is over and the file deletion, even then sending messages and reports are available. Maximum monitoring capacity is 8 exabytes so this feature can be used for various purposes.

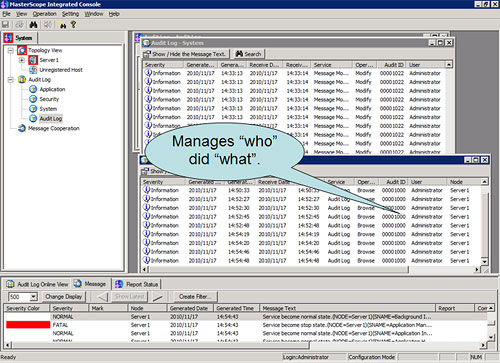

Audit log management

Manages operating status and automatically processes with the help of/by monitoring the terminal/Manager. Each operation and result is recordable as the audit logs for future tracing.

And it is also possible to send a report when certain audit log is being generated.


Report feature

Alert by flasher, sending e-mail, executing commands (Manager only) in case of server down, etc. Reports can be sent to multiple destinations at the same time.

Network products special order items
(These products are linked with MasterScope SystemManager report feature)

Supported Patlite
Types Special order number Specifications
NHE-3FB-RYG T0114 Firmware English letters
  • English short instruction booklet
  • AC adapter corresponding to 100-240V
NHM-3FB-RYG T0114 Firmware English letters
  • English short instruction booklet
  • AC adapter corresponding to 100-240V
PHC-100A FT003
  • English letters
  • NO AC adapter
PHE-3FBE1-RYG FT008 NO AC adapter
  • English letters
  • Indicating lamp LCE-302FBW-RYG
  • Supports RoHS direction
  • CE marking
    (EN specification adaptation item)
PHE-3FBE1-RYG FT007
  • Silver body
  • NO AC adapter
  • English letters
  • Indicating lamp LCE-302FBW-RYG
  • Supports RoHS direction
  • CE marking
    (EN specification adaptation item)

Also see PATLITE Corporation global website here: http://www.patlite.com/

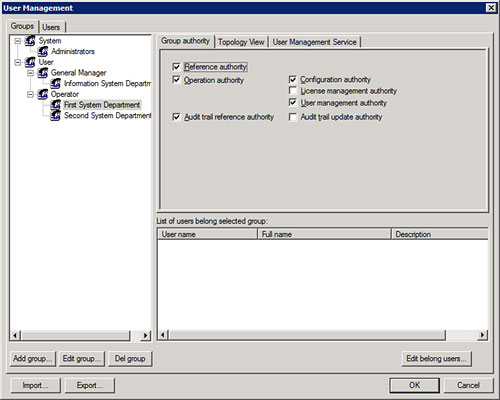

User management

This feature manages system user information used in the system. Once a user belongs to a group, he/she can perform operations permitted by the rights granted to the group.

User information management
Create and manage system users.

Group information management
Create and manage groups to which users belong and grant rights to groups.

Available rights
Available rights include the operation right, definition modification right, user management right, and monitor-server-specific reference right.

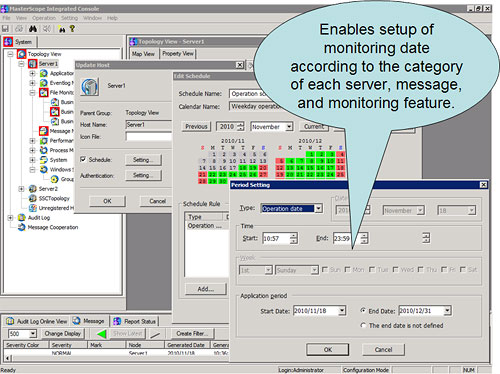

Scheduling feature

Controls the on/off of monitoring on defined schedule for each server and message categories.

You can automatically stop monitoring when the server stops at night or during maintenance or automatically start monitoring when the server starts up.


Multi-instance

Multiple Agents (including logical system monitor Agents) and monitor terminals can be installed and started on a single server. You can send monitoring data from one server to multiple Managers and monitor/operate multiple Managers from one machine.

Online backup

It does backup monitoring setting while the manager service is running.

  • Backup and restoration can be started using a command.
  • The Manager service must be stopped during restoration.

Web browser console

The Web browser can be used for monitoring instead of the monitor terminal, which requires installation.

Logical system monitoring

Monitors all the statuses of all resources that keep changing in accordance with the cluster package. User can monitor, regardless of the fact that on which host the package is running on.

Monitoring level is the same as usual (performance, alive status, etc). Only the active server can be monitored since the resource on the cluster change is in line with the package.

Logical system agent only supports the active-standby type.

  • Monitors the package on the clustered system without being aware of the operation host.
  • The icons displayed in the topology view are specific to the logical system.

Linkage with the other operation management software

SystemManager links with related operation management tools and also integrates the information from the other products.

Linkage products

  • ESMPRO products (such as ServiceManager, Network Manager, etc.)

Linkage features and tools

  • Server Agent linkage service
  • Operations message notification API
  • Event Trap Utility

Optional features

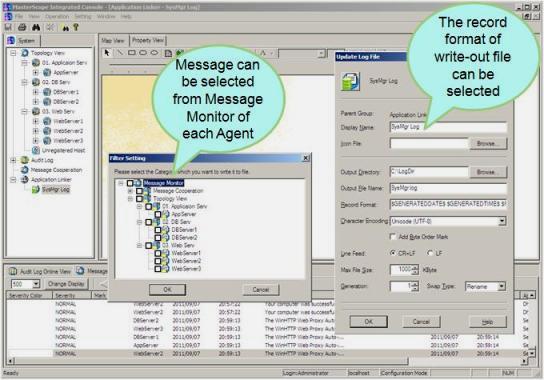

Application linkage (MasterScope SystemManager ApLinker Manager)

Here the text filled message is sent as an output which is collected by SystemManager to the external applications.

The record format of write-out file can be selected and the user can specify various character encoding (UTF-8, Shift-JIS, etc) to write log files. Log rotation is also made available.
