Development and Demonstration of World-leading Technologies that Increase Submarine Optical Cable Capacity with Multicore FiberFeasibility of capacity seven times higher than existing systems verified
March 28, 2022
KDDI Research, Inc.
Sumitomo Electric Industries, Ltd.
Furukawa Electric Co., Ltd.
Optoquest Co., Ltd.
Japan's Ministry of Internal Affairs and Communications formulated the technical research and development theme II “Multicore high-capacity optical transmission system technology" to support development of innovative optical network technology with a novel social infrastructure (JPMI00316) over FY 2018–2021. As part of this initiative, the Ministry commissioned six organizations: KDDI Research, Inc. (KDDI Research; President and CEO: Hajime Nakamura), Tohoku University (Tohoku University; President: Hideo Ohno), Sumitomo Electric Industries, Ltd. (Sumitomo Electric; President: Osamu Inoue), Furukawa Electric Co., Ltd. (Furukawa Electric; President: Keiichi Kobayashi), NEC Corporation (NEC; President, & CEO: Takayuki Morita), and Optoquest Co., Ltd. (Optoquest; President: Noboru Higashi) to conduct research and development (R&D) to meet the global data distribution demand for increased capacity of submarine optical cable systems, which constitute the principal international data communication infrastructure.
Multicore fibers are optical fibers with multiple light-propagating cores that exhibit higher transmission capacity than conventional optical fibers. This R&D project assessed the transmission capacity of a long-distance optical submarine cable system in the laboratory. We developed submarine optical cables using multicore fibers, compact multicore fiber optical amplifiers, and submarine optical cable performance assessment technology to establish the fundamental technologies needed to increase the capacity of the submarine optical cable system. We demonstrated the feasibility that the multicore fibers enhanced the transmission capacity of a 3,000 km class submarine optical cable system (covering the Asian-Pacific region) to about 1.7 Petabit per second (Pbit/s), seven-fold higher than the existing system (Note 1).
This R&D project has established the fundamental technology that facilitates the expansion of global data communication infrastructures utilizing multicore fibers. Furthermore, we will promote R&D for practical applications, including mass production, operation, and maintenance of the infrastructure, with the objective of enabling commercialization of the technology by the mid-2020s.
The global data transmission rate has increased significantly due to 5G mobile communications and enhanced data transmission between data centers. However, the annual demand for international communication traffic is expected to grow by 30–40% between 2020 and 2026 (Note 2). This trend might be accelerated as online activities continue to advance. Submarine optical cable infrastructure enables high-capacity international data transmission, and transmission capacity can be enhanced by employing multiple optical fibers in a cable. However, conventional optical cables can house only a limited number of optical fibers without changing the cable's outer diameter. Therefore, in the absence of emerging technologies, increasing data transmission capacity has been a difficult challenge.
R&D Overview and Results

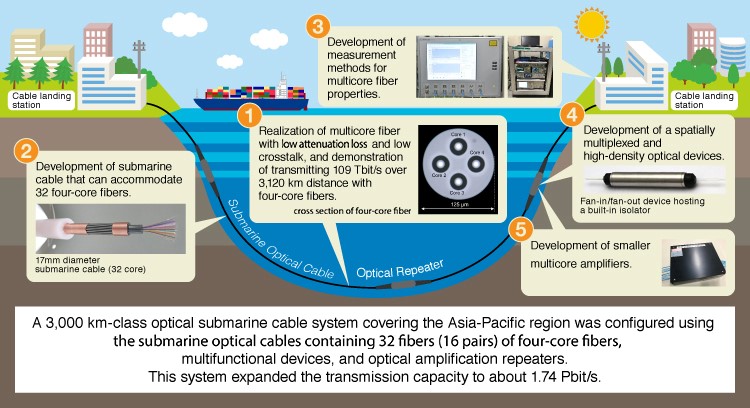

KDDI Research, Tohoku University, Sumitomo Electric, Furukawa Electric, NEC, and Optoquest were commissioned to conduct research and development of multicore fibers that house multiple light propagating cores in an optical fiber, which helps to overcome the limitations of conventional optical fibers. The six organizations have developed and demonstrated the fundamental technologies (Fig. 1, steps 1 - 5) needed to realize a sustainable, high-capacity submarine optical cable system. Combining all development and verification results, the feasibility of expanding transmission capacity to approx. 1.74 Pbit/s has been verified for a 3,000 km-class optical submarine cable system covering the Asia-Pacific region by using submarine optical cables containing 32 fibers (16 pairs) of four-core fibers, multifunctional devices, and optical amplification repeaters.
- *Steps 1, 2, and 4 were announced by the six companies.
Steps 1-5 are described below.
1) Development and demonstration of a multicore fiber-based long-haul transmission system.
We developed multicore fibers with the world's lowest transmission loss levels. Our multicore fibers contain four cores (four-core fibers), enabling transmission capacity that is four times higher than conventional optical fibers. Additionally, we successfully transmitted ultra-high-speed optical signals over multicore fibers across a transpacific distance. Specifically, successful long-haul multicore fiber transmission at 109 and 56 Terabits per second (Tbit/s) over distances of 3,120 and 12,000 km, respectively, have been demonstrated. As intercore crosstalk has been a major issue in multicore fiber transmission, we optimized the optical fiber structure and manufacturing methods to generate a multicore fiber with lower intercore signal interference. The four-core fiber optic cable exhibited 0.155 dB/km class transmission loss and crosstalk lower than -60 dB/100km.
- *Realization of Multicore Fiber with Low Crosstalk and Ultralow Attenuation Loss
Furukawa Electric, KDDI Research, November 30, 2020.
2) Submarine cable development implementing multicore fiber
We developed the first submarine multicore optical cable system, featuring fibers with significantly higher transmission capacity, while maintaining the same optical fiber size and cable diameter. The cable houses a total of 32 x four-core fibers, enabling up to 128-core high-capacity transmission. Through underwater and long-distance transmission tests assuming actual operational conditions, we have verified the high-quality transmission performance of our multicore fiber cables, while maintaining excellent optical performance, such as lower optical attenuation and intercore crosstalk, after the cabling process.
- *We developed the world's first multicore fiber optic submarine cable.
NEC, OCC, Sumitomo Electric, October 4th, 2021
3) Quality assessment technology for multicore fibers
We developed two evaluation techniques to assess the optical properties of the multicore fibers (housing four or more cores) and the submarine cables that house them. Firstly, the wavelength sweeping method evaluated the mode-dependent loss and crosstalk of the multicore fibers. Secondly, the OTDR (Optical Time-Domain Reflectometer) method evaluated the longitudinal distribution of loss and crosstalk of the multicore fibers. These methods evaluated a 60 km four-core fiber cable. The cable’s crosstalk was similar to that predicted using the fiber characteristics. Both methods were consistent with errors of less than 1 dB.
4) Development of high-density optical devices using a space-division multiplexing (SDM) technique.
We developed three multifunctional device types for the multicore fiber optical amplifiers. The three multifunctional devices for four-core fibers were a) a fan-in/fan-out device hosting an optical isolator, b) a TAP monitoring device with fan-out, and c) a TAP monitoring device having an O/E (optical to electrical) converter. Integration of these functions into a single device enabled ultra-low loss (typically 0.4dB) and compact optical devices (size reduction of 55%) for multicore fiber optical amplifiers.
- *Optoquest developed multifunctional optical devices (three types) for multicore fiber optical amplifiers.
Optoquest, October 22, 2021.
5) Development and validation of multicore optical amplification and optical repeater systems.
Conventional multicore amplifiers containing a single-core optical amplifier and a fan-in/fan-out device are large and require gain blocks proportional to the number of cores (Note 3). As a result, increasing the capacity of submarine optical cables to meet the growing data transmission demand and accommodating large-sized amplifiers within the submarine cable repeaters has been challenging. Therefore, we developed a smaller multicore optical amplifier and have evaluated its basic optical amplification operation. Our amplifier employs a cladding pumping system, which amplifies multiple cores in one gain block, and by reconfiguring the gain block components we succeeded in lowering the amplifier's volume by about half when compared to conventional devices.
Combining these results, we constructed a 3,000 km class submarine optical cable system that covers the Asian-Pacific region and contains 32 fibers (16 pairs) of four-core fibers, multifunction devices, and optical amplification repeaters. We demonstrated the feasibility that our system expanded data transmission capacity to about 1.7 Pbit/s, seven-fold higher than conventional systems. In the future, based on the foundational technology and infrastructure established by this R&D, we will pursue the development of technologies for the mass production of multicore fiber, verification of its long-term reliability, and development of operation and maintenance technologies, with the goal of putting them into practical use in the mid-2020s.
(Note 1) Current long-distance submarine optical fiber cables exhibiting the largest transmission capacity: Dunant (250 Tbit/s)
(Note 2) Source: TeleGeography
(Note 3) The amplified optical signals became weaker during transmission, potentially due to the amplifying medium and the optical components attached to the optical amplifier.
