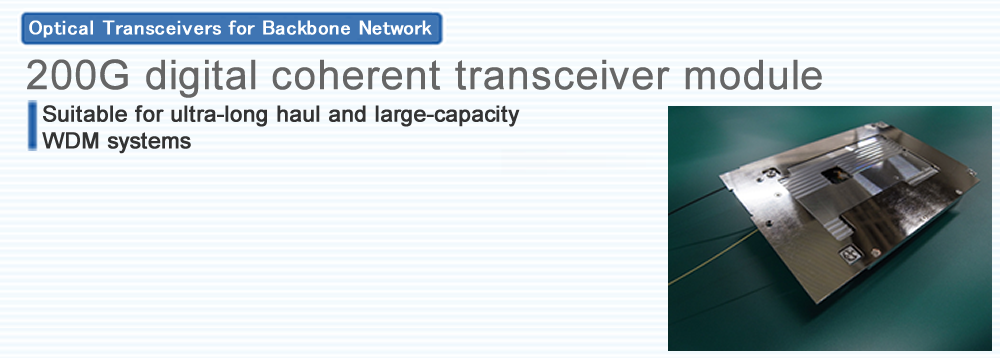

200G digital coherent transceiver module


NEC offers 100G-200Gbit/s optical transceiver module using digital coherent technologies, which realize ultra-long haul transmission, as well as high-capacity with single carrier.
This transceiver module capable up to 2x 100Gbit/s client payload.

   Client interface:    100GbE (CAUI-4), OTU4 (OTL4.4)
   Size:                5” x 7”, 17 mm (w/o heatsink)
   Connector:             320 pin
   Voltage supply:        12 V
   Power consumption: 45 W
   Distance:                 3,000 km with 100G QPSK, 1,000 km with 200G 16QAM

Product Lineup

Available for both C-band, A-band and L-band.

Status: General availability
